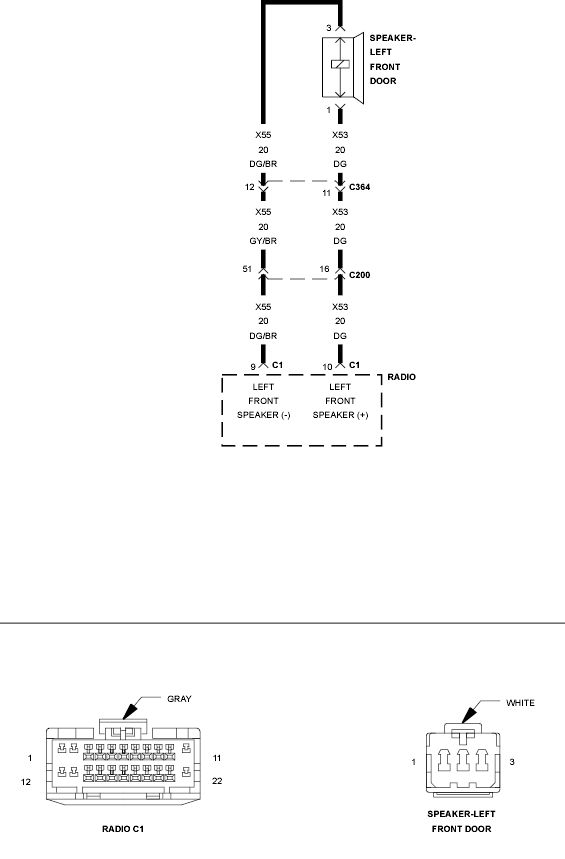

Home >> Jeep >> 2009 >> Commander Overland, 4WD >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> Audio System (Radio) - Electrical Diagnostics >> DTC Troubleshooting >> B1403-Front Left Audio Speaker Output Circuit Open >> Circuit Schematic
