DAMPER, Vibration: Removal: Removal

WARNING: This page is about a different variant/trim than selected.

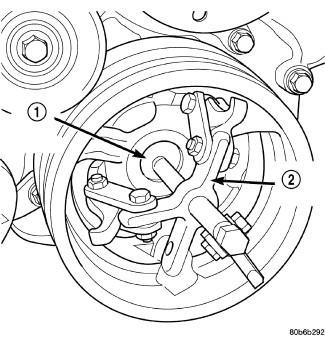

Fig 1: Removing/Installing Damper
GC0104495Courtesy of CHRYSLER LLC
  1. Disconnect the negative cable from battery.
  2. Remove the radiator fan. Refer to Cooling/Engine/FAN, Cooling - Removal .
  3. Remove accessory drive belt. Refer to Cooling/Accessory Drive/BELT, Serpentine - Removal .
  4. Remove the vibration damper bolt.
  5. Remove damper using the Crankshaft Insert 8513A (1) and Three Jaw Puller 1026 (2).
