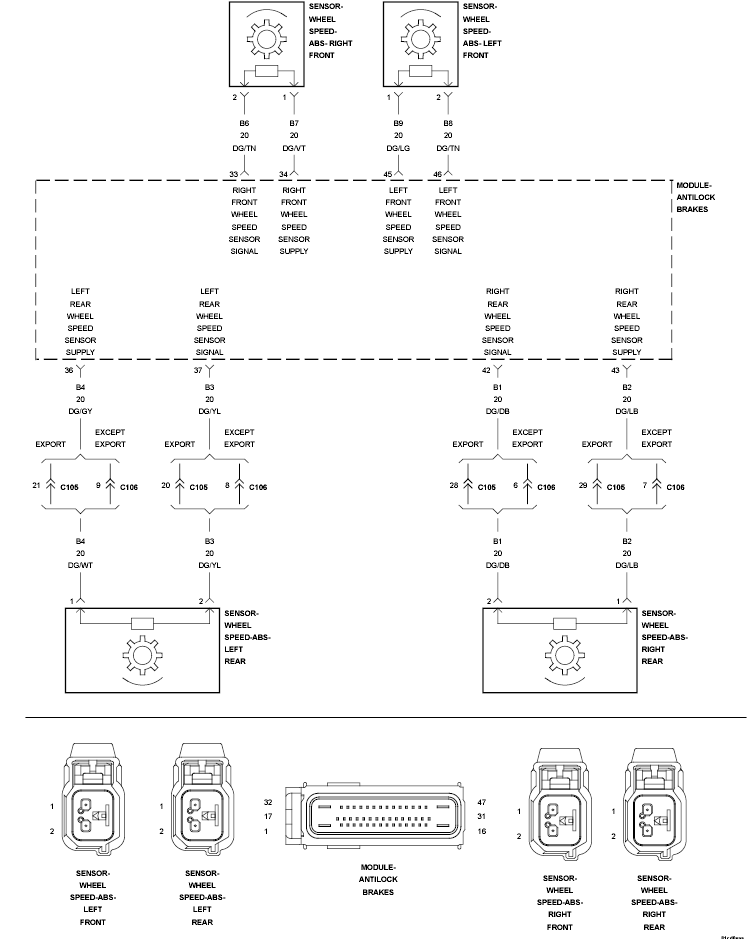

Home >> Jeep >> 2009 >> Commander Limited, 5.7 T, 4WD >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Brake System - Electrical Diagnostics >> DTC Troubleshooting >> C100A-Left Front Wheel Speed Sensor Circuit >> Circuit Schematic
