MODULE, Fuel Pump: Description: Description: Notes

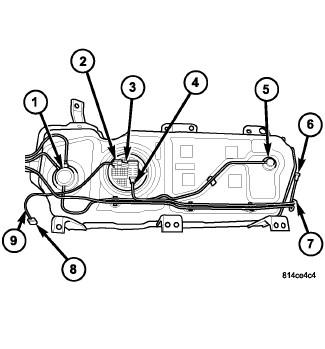

The fuel pump module assembly (3) is located on top of fuel tank.

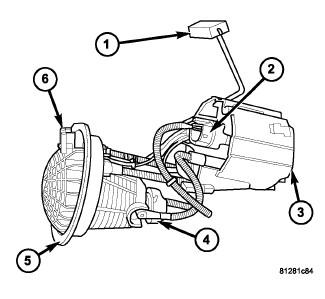

The module assembly (5) contains the following components:
- An internal fuel filter
- A separate fuel pick-up, or inlet filter (3)
- A fuel pressure regulator (4)
- An electric fuel pump (2)
- A lock-ring to retain pump module to tank
- A soft gasket between tank flange and module
- A fuel gauge sending unit (fuel level sensor) (1)
- Fuel line connection (6)
If the fuel gauge sending unit, electrical fuel pump, primary inlet filter, fuel filter, or fuel pressure regulator require service, the fuel pump module must be replaced.
