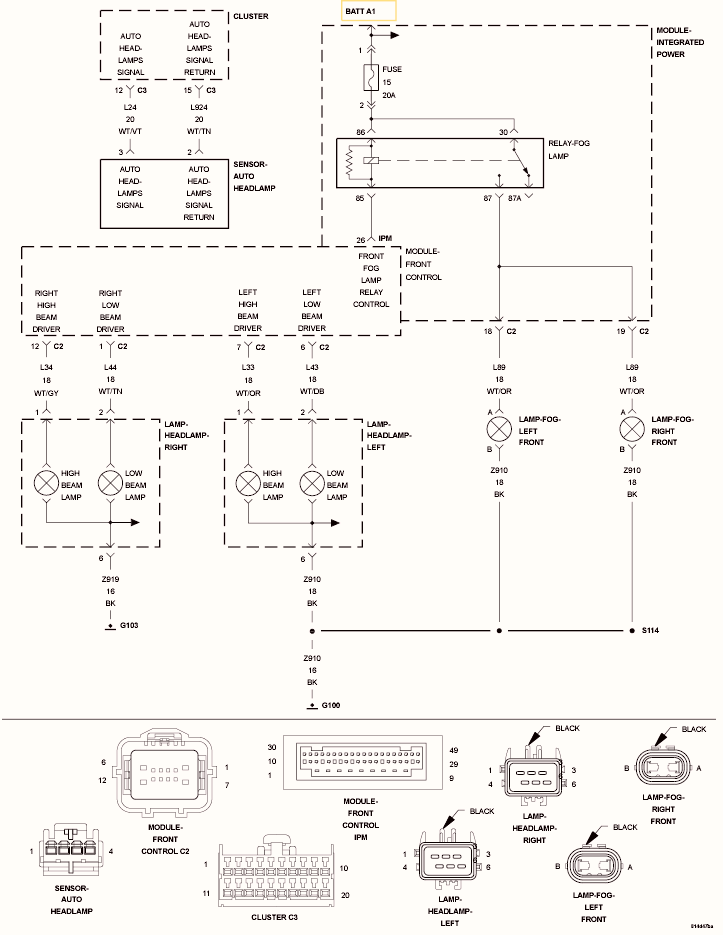

Home >> Jeep >> 2009 >> Commander Limited, 4.7 P, 4WD >> Repair and Diagnosis >> Accessories & Equipment >> Memory Modules >> Front Control Module (FCM) - Electrical Diagnostics >> DTC Troubleshooting >> B162B-Left Low Beam Control Circuit Low >> Circuit Schematic
