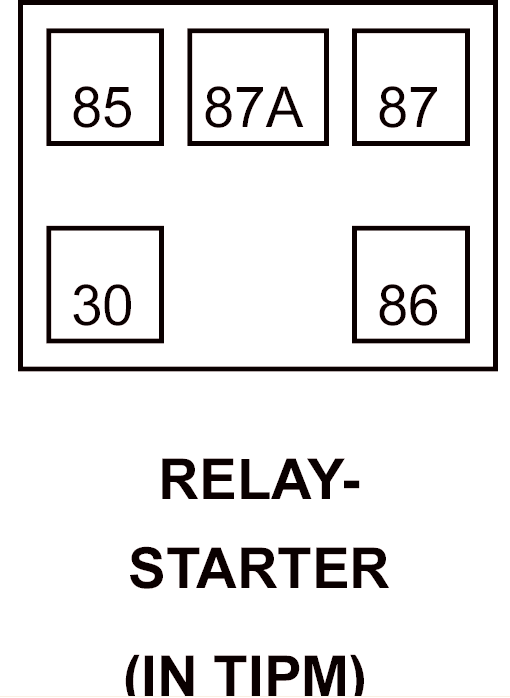

Starter Relay Connector End View

RELAY-STARTER - 0 WAY

GJK813009Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
30 INTERNAL FUSED B(+)
85 INTERNAL STARTER COIL DRIVER
86 T752 18DG/OR STARTER RELAY CONTROL
87 T750 12YL/GY STARTER RELAY OUTPUT
87A - -
