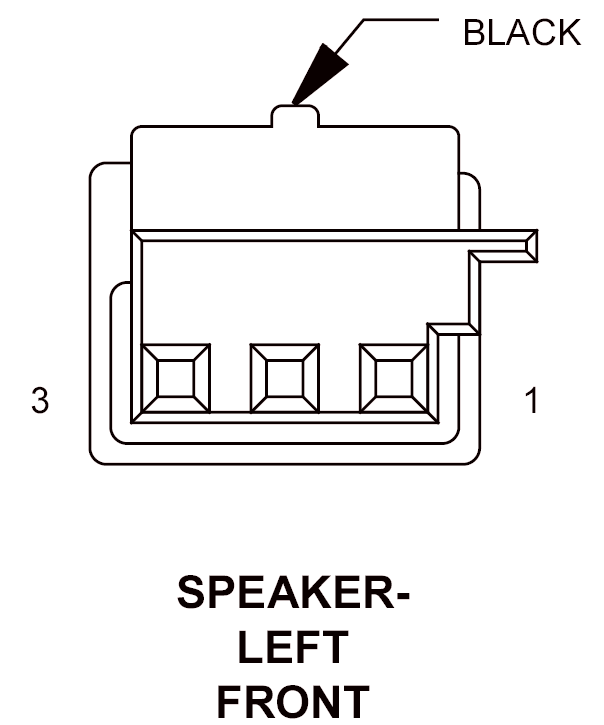

Left Front Speaker Connector End View
SPEAKER-LEFT FRONT - BLACK 3 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X209 18GY/OR |
AMPLIFIED LEFT FRONT SPEAKER (+) (AMPLIFIER) |
| 1 |
X201 18GY/VT |
LEFT FRONT SPEAKERS (+) (EXCEPT AMPLIFIER) |
| 2 |
- |
- |
| 3 |
X299 18GY/YL |
AMPLIFIED LEFT FRONT SPEAKER (-) (AMPLIFIER) |
| 3 |
X291 18GY/YL |
LEFT FRONT SPEAKERS (-) (EXCEPT AMPLIFIER) |
