Wrangler X, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>

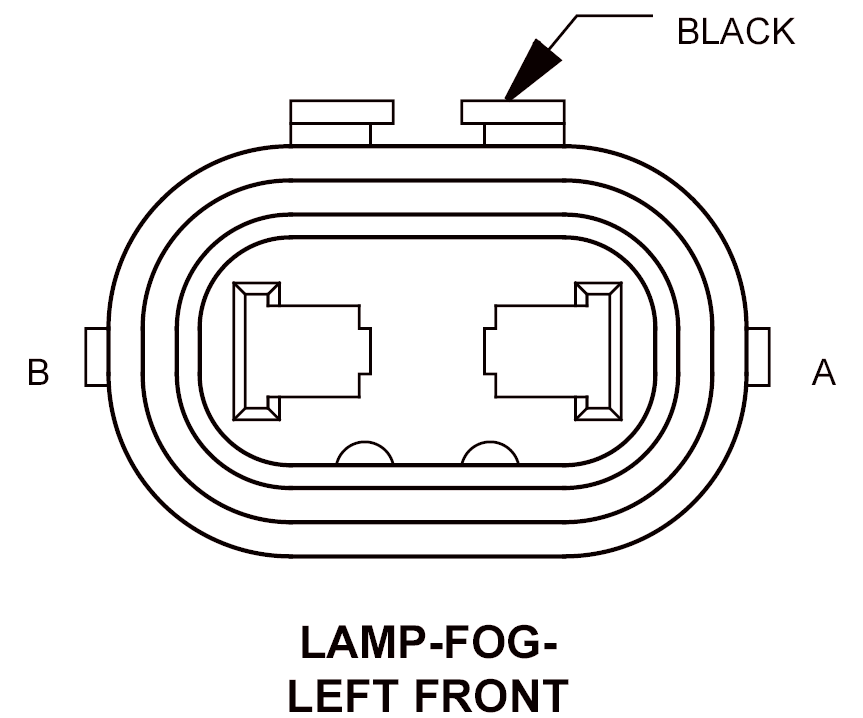

Left Front Fog Lamp Connector End View
Left Front Fog Lamp Connector End View
LAMP-FOG-LEFT FRONT - BLACK 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
A
Z905 18BK
GROUND
B
L89 18WT/YL
LEFT FRONT FOG LAMP CONTROL
