Wrangler X, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>
Intake Air Temperature Sensor (Gas) Connector End View
Intake Air Temperature Sensor (Gas) Connector End View

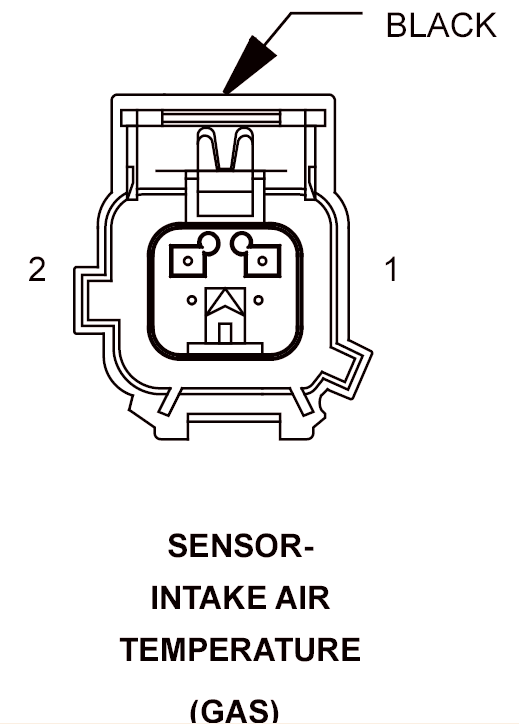

SENSOR-INTAKE AIR TEMPERATURE - BLACK 2 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K21 18DB/LG
IAT SIGNAL
2
K900 18DB/DG
SENSOR GROUND
Courtesy of CHRYSLER CORP.
