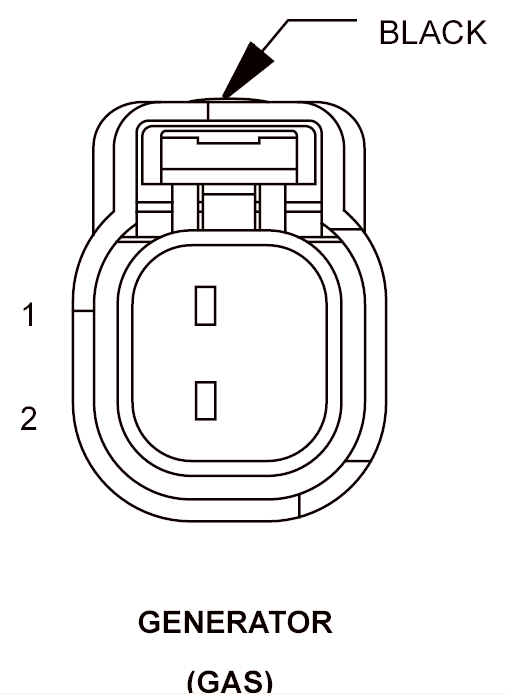

Generator (Gas) Connector End View

GENERATOR - BLACK 2 WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K125 18BR/GY	GEN FIELD CONTROL
2	A804 16RD/GY	GEN SENSE

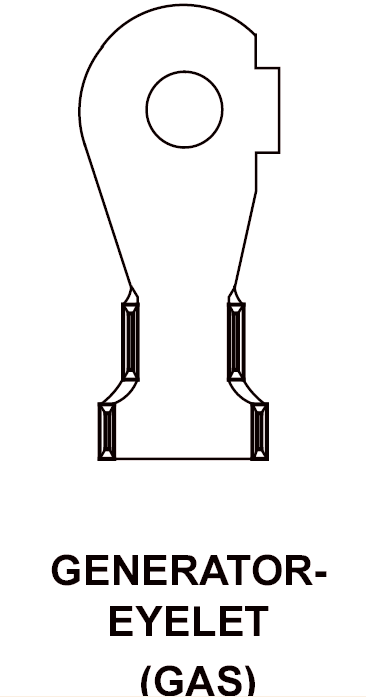

GENERATOR-EYELET - 1 WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A801 6RD/GY	FUSED B(+)
