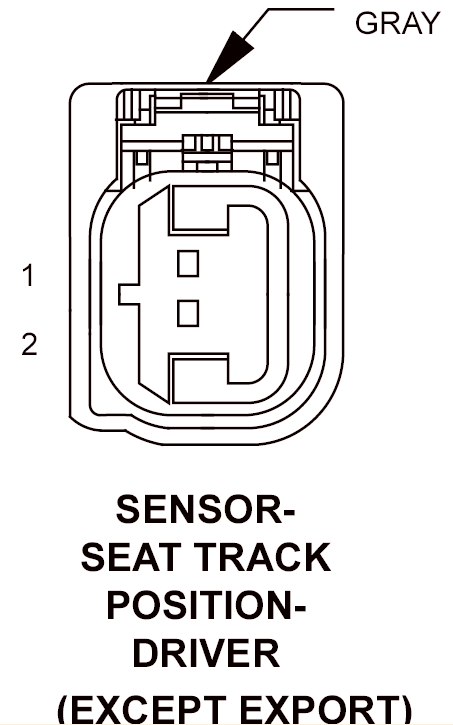

Driver Seat Track Position Sensor (Except Export) Connector End View
SENSOR-SEAT TRACK POSITION-DRIVER - GRAY 2 WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R261 20LB/WT |
DRIVER SEAT TRACK POSITION SENSOR SIGNAL |
| 2 |
R263 20LB/VT |
DRIVER SEAT TRACK POSITION SENSOR SUPPLY |
