Cigar Lighter Connector End View

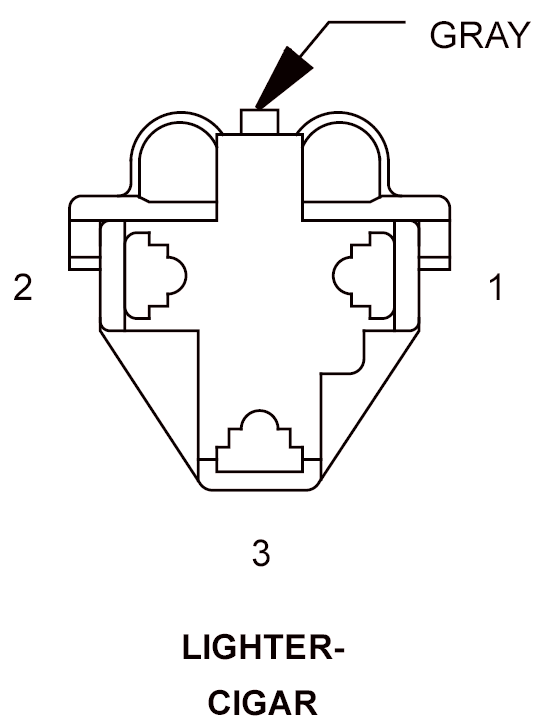

LIGHTER-CIGAR - GRAY 3 WAY

GJK880159Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 F306 16DB/PK FUSED RUN/ACCESSORY RELAY OUTPUT
2 - -
3 Z911 18BK/WT GROUND
