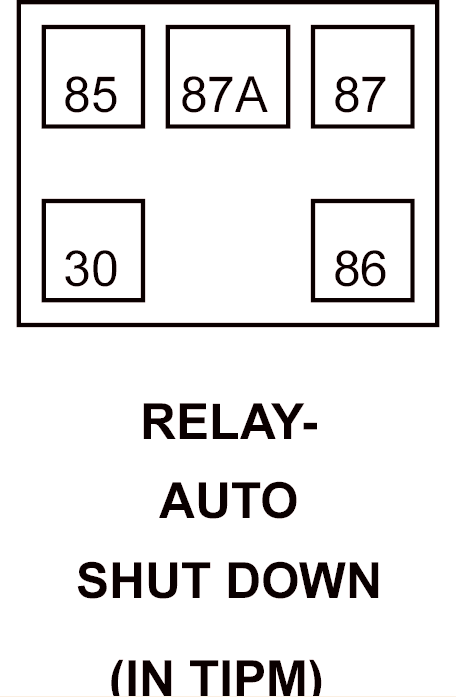

Automatic Shut Down Relay Connector End View

RELAY-AUTO SHUT DOWN - 0 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	INTERNAL	B(+)
85	INTERNAL	B(+)
86	K51 20BR/WT	ASD RELAY CONTROL
87	INTERNAL	ASD RELAY OUTPUT
87A	-	-
