Ambient Air Temperature Sensor Connector End View

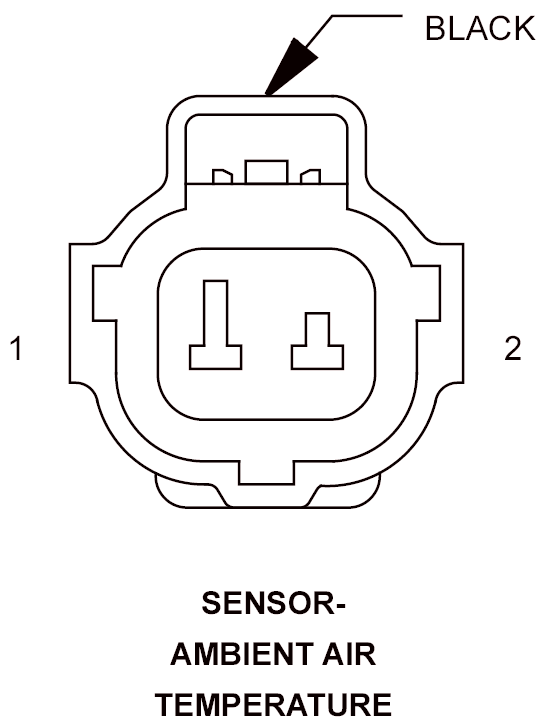

SENSOR-AMBIENT AIR TEMPERATURE - BLACK 2 WAY

GJK880215Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G31 18VT/LG AAT SIGNAL
2 G931 18VT/BR SENSOR GROUND
