Power Steering Pump

Fig 1: Mounting Bolts

Courtesy of CHRYSLER LLC

Install the pump to the vehicle.
Install the three bolts (2) securing the pump (1) to the engine and tighten to 47 N.m (35 ft. lbs.).

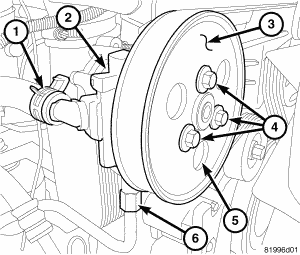

Fig 2: 2.8L Pump
Courtesy of CHRYSLER LLC
Install the power steering hoses (1&6). Tighten to 28 N.m (21 ft. lbs.).
Install the power steering pulley to the pump.
Install the three bolts (4) securing the pulley (3) to the pump (2).
Install the serpentine belt.

Fig 3: Air Inlet Tube
Courtesy of CHRYSLER LLC
Install the air inlet tube (1).
Install the air cleaner box. Refer to INSTALLATION .
Refill the power steering fluid and bleed the system. See STANDARD PROCEDURE .
