Driver Seat Belt Switch Connector End View

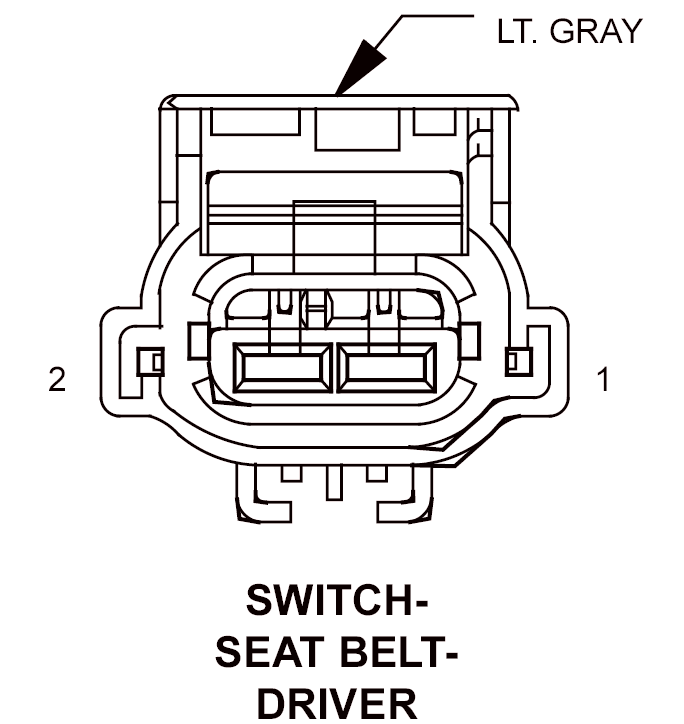

Driver Seat Belt Switch Connector End View
SWITCH-SEAT BELT-DRIVER - LT. GRAY 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
R57 20LG/GY
DRIVER SEAT BELT SWITCH SENSE
2
Z912 20BK
GROUND
Courtesy of CHRYSLER CORP.
