Pressure Hose

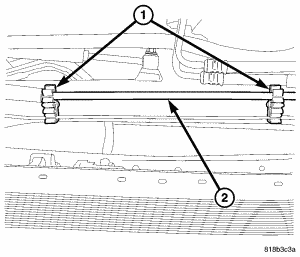

Fig 1: P/S Hose

Courtesy of CHRYSLER LLC

Install the pressure hose to the vehicle.
Install and secure the pressure hose at the routing clips (1).

Fig 2: Steering Gear
Courtesy of CHRYSLER LLC
Install the Pressure hose (2) at the gear. Tighten the tube nut to 36 N.m (27 ft. lbs.).

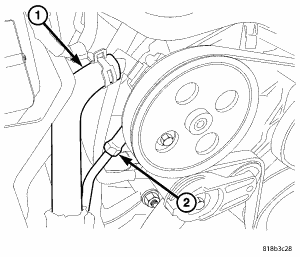

Fig 3: Pressure Hose
Courtesy of CHRYSLER LLC
Install the pressure hose (2) at the pump pressure port. Tighten the tube nut to 31 N.m (23 ft. lbs.).
Reinstall the coolant bottle back into position.
Fill and bleed the power steering system. See STANDARD PROCEDURE .
Check for leaks.
Install the air box assembly. Refer to INSTALLATION .
