Steering Damper Bracket

Fig 1: Steering Damper
GC0064532Courtesy of CHRYSLER LLC
  1. Remove the steering damper nut (1) from the bracket.

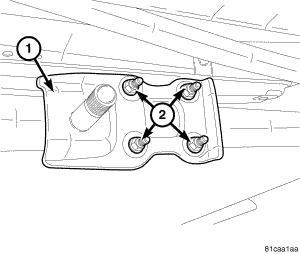

    Fig 2: Steering Damper Bracket
    GC0064533Courtesy of CHRYSLER LLC
  2. Remove the four nuts (2) for the U-bolts.
  3. Remove the U-bolts and bracket (1).
