Water In Fuel Sensor (Diesel) Connector End View

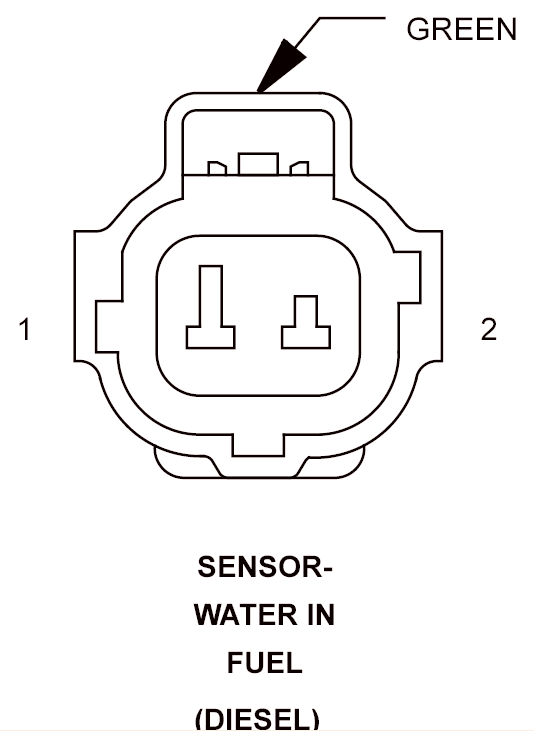

SENSOR-WATER IN FUEL - GREEN 2 WAY (DIESEL)

GJK880260Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 G123 20VT/LG WATER IN FUEL SIGNAL
2 K923 20BR/WT WATER IN FUEL SENSOR GROUND
