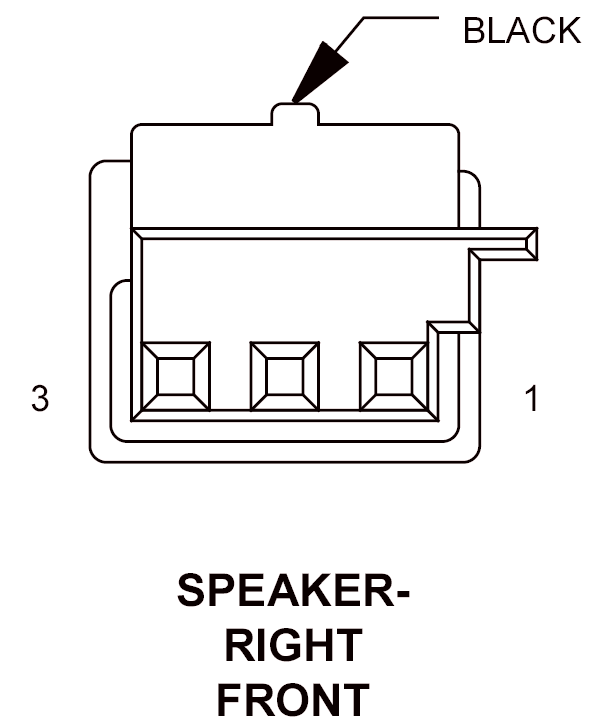

Right Front Speaker Connector End View
SPEAKER-RIGHT FRONT - BLACK 3 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X208 18GY/DG | AMPLIFIED RIGHT FRONT SPEAKER (+) (AMPLIFIER) |
| 1 | X202 18DG/VT | RIGHT FRONT SPEAKERS (+) (EXCEPT AMPLIFIER) |
| 2 | - | - |
| 3 | X298 18GY/LG | AMPLIFIED RIGHT FRONT SPEAKER (-) (AMPLIFIER) |
| 3 | X292 18DG/YL | RIGHT FRONT SPEAKERS (-) (EXCEPT AMPLIFIER) |
