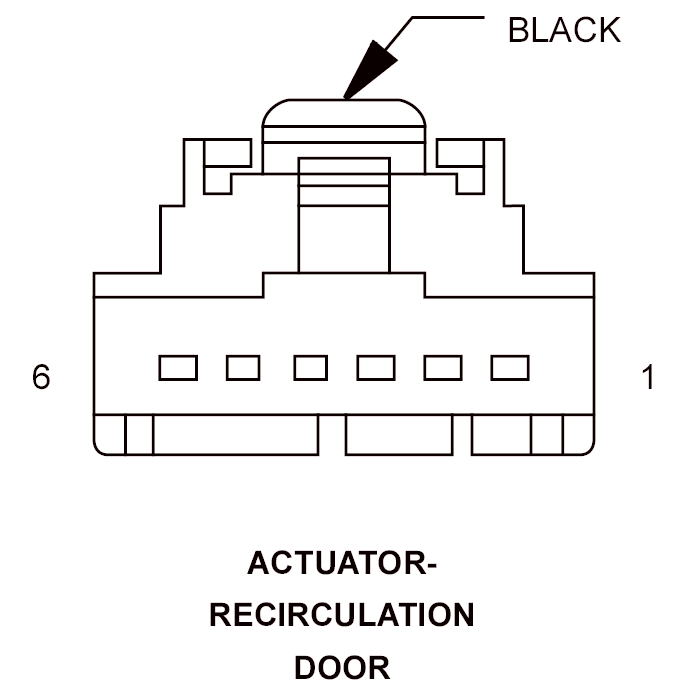

Recirculation Door Actuator Connector End View

ACTUATOR-RECIRCULATION DOOR - BLACK 6 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C32 22DB/TN	RECIRCULATION DOOR DRIVER (A)
2	-	-
3	-	-
4	-	-
5	-	-
6	C132 22DB/YL	RECIRCULATION DOOR DRIVER (B)
