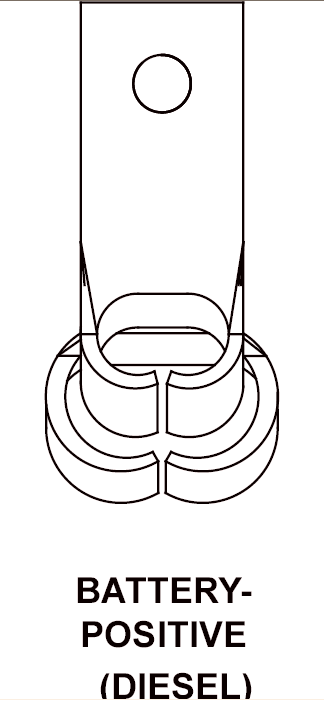

Positive Battery (Diesel) Connector End View

BATTERY-POSITIVE - 1 WAY (DIESEL)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A0 2RD	B(+)
1	A0 6RD	B(+)
1	A1 4RD	B(+)
