Wrangler Rubicon, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>
Parking Brake Switch Connector End View
Parking Brake Switch Connector End View

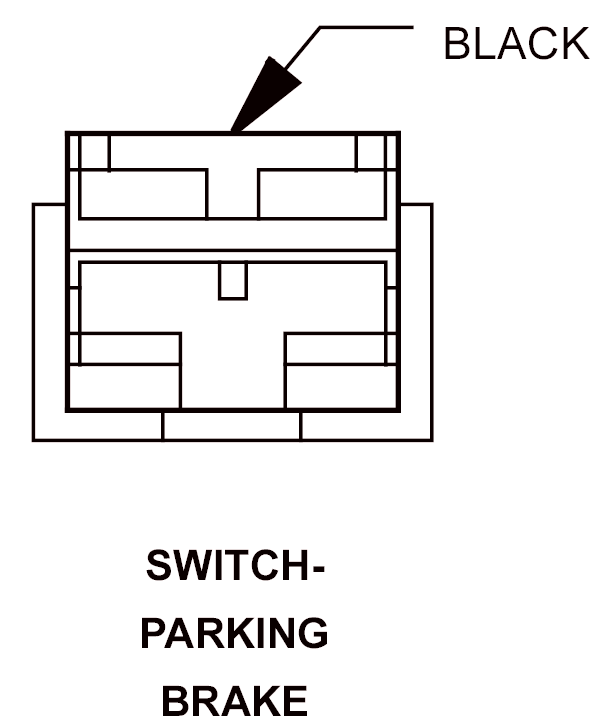

SWITCH-PARKING BRAKE - BLACK 1 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
B25 20DG/WT
PARK BRAKE SWITCH SENSE
Courtesy of CHRYSLER CORP.
