Wrangler Rubicon, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>
License Lamp (Export) Connector End View
License Lamp (Export) Connector End View

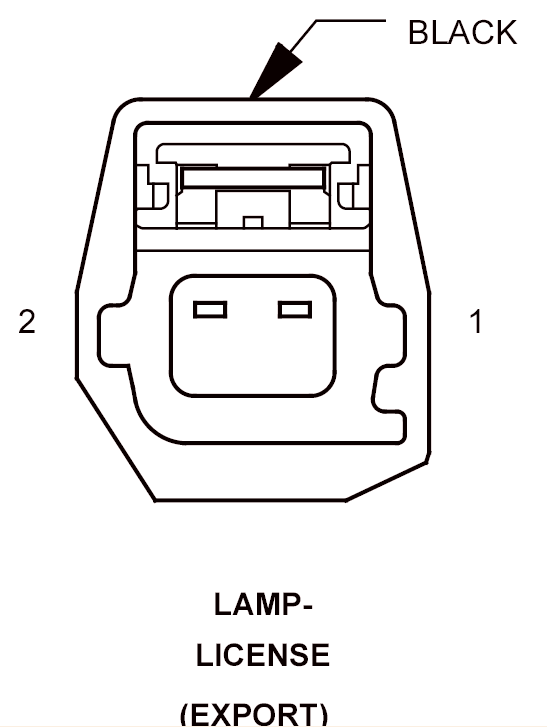

LAMP-LICENSE - BLACK 2 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z912 18BK
GROUND
2
L217 18WT/VT
RIGHT REAR PARK LAMP CONTROL OUTPUT
