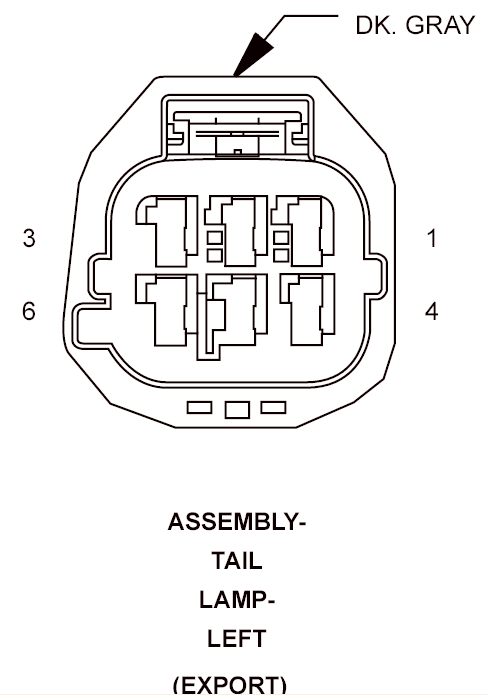

Left Tail Lamp Assembly (Export) Connector End View
ASSEMBLY-TAIL LAMP-LEFT - DK. GRAY 6 WAY (EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z912 18BK |
GROUND |
| 2 |
L17 18WT/OR |
LEFT REAR PARK LAMP CONTROL OUTPUT |
| 3 |
L53 18DG/WT |
LEFT REAR STOP SIGNAL CONTROL |
| 4 |
L1 18WT/GY |
BACKUP LAMP CONTROL OUTPUT |
| 5 |
L63 18WT/DG |
LEFT REAR STOP/TURN SIGNAL CONTROL |
| 6 |
- |
- |
