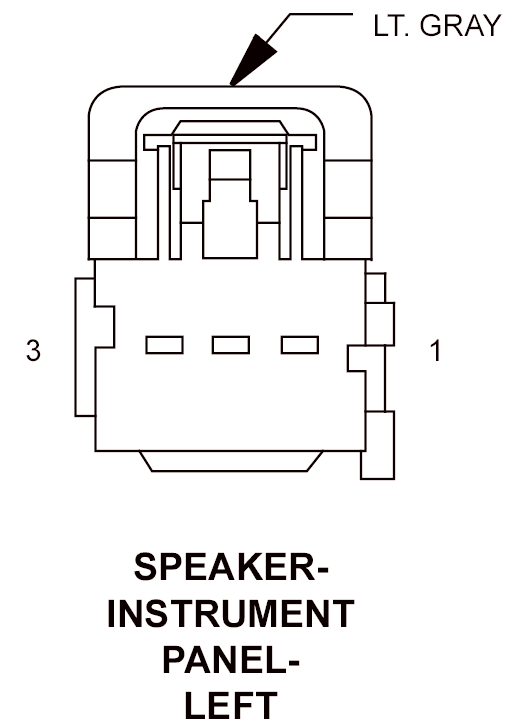

Left Instrument Panel Speaker Connector End View
SPEAKER-INSTRUMENT PANEL-LEFT - LT. GRAY 3 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X201 18GY/VT | AMPLIFIED LEFT I/P SPEAKER (+) (AMPLIFIER) |
| 1 | X201 18GY/VT | LEFT FRONT SPEAKERS (+) (EXCEPT AMPLIFIER) |
| 2 | - | - |
| 3 | X291 18GY/YL | AMPLIFIED LEFT I/P SPEAKER (-) (AMPLIFIER) |
| 3 | X291 18GY/YL | LEFT FRONT SPEAKERS (-) (EXCEPT AMPLIFIER) |
