Left Front Turn Lamp (Export) Connector End View
Left Front Turn Lamp (Export) Connector End View

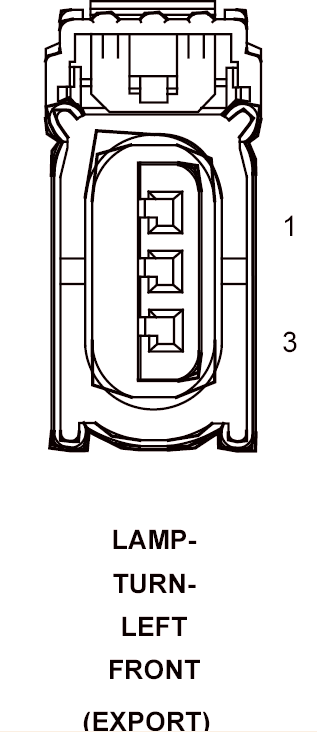

LAMP-TURN-LEFT FRONT - 3 WAY (EXPORT) FEMALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L161 18WT/LG
LEFT FRONT TURN SIGNAL CONTROL
2
-
-
3
Z904 18BK
GROUND
