Wrangler Rubicon, Standard
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
Connector End Views
>>
Connector Pin-Outs
>>
Knock Sensor (Gas) Connector End View
Knock Sensor (Gas) Connector End View

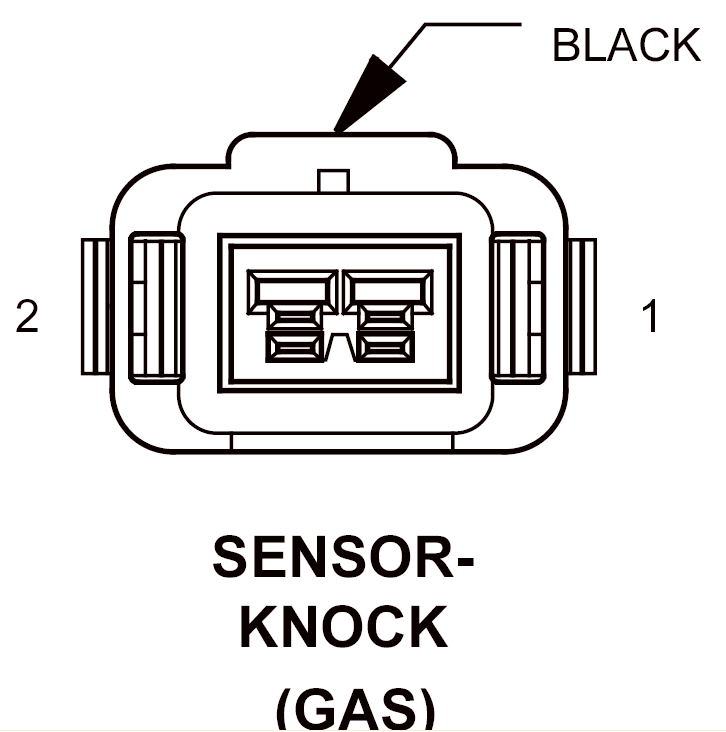

SENSOR-KNOCK - BLACK 2 WAY (GAS)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
K42 18DB/YL
KS SIGNAL
2
K942 18BR/LG
KS RETURN
Courtesy of CHRYSLER CORP.
