Front Locker Switch (4WD Off-Road) Connector End View

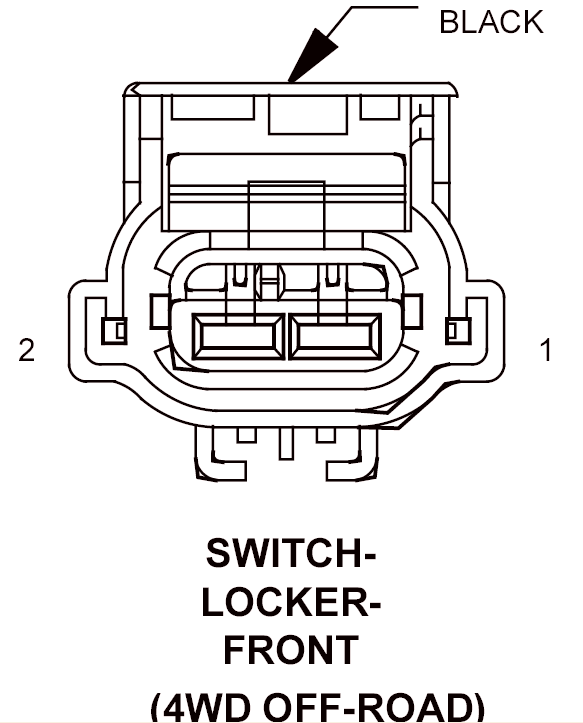

SWITCH-LOCKER-FRONT - BLACK 2 WAY (4WD OFF-ROAD)

GJK880292Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T522 18YL/LB FRONT LOCKER SWITCH SENSE
2 K91 18DB/YL SENSOR GROUND
