Dome Lamp Connector End View

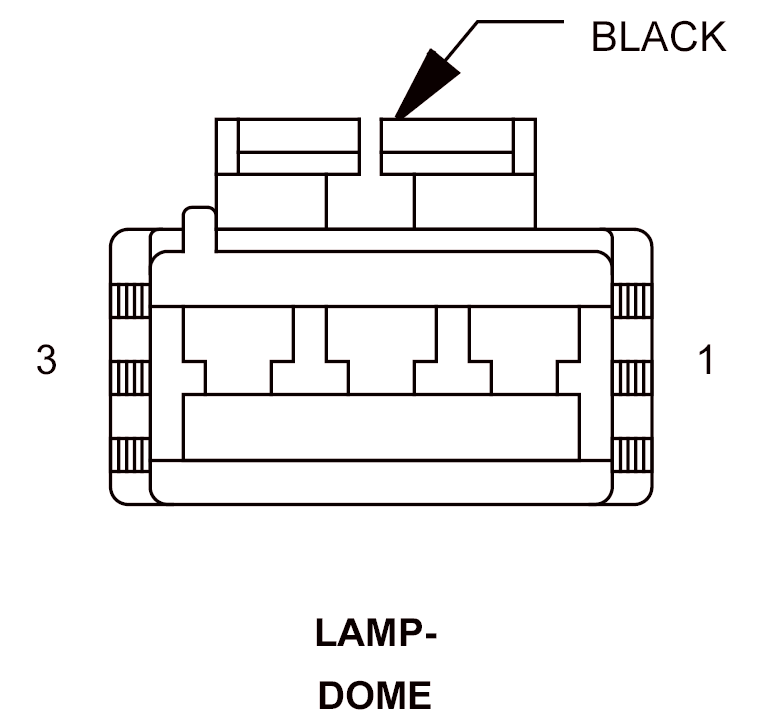

Dome Lamp Connector End View
LAMP-DOME - BLACK 3 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
-
-
2
M24 20YL/WT
COURTESY LAMPS DRIVER
3
Z912 20BK
GROUND
Courtesy of CHRYSLER CORP.
