Clutch Interlock Switch (M/T) Connector End View

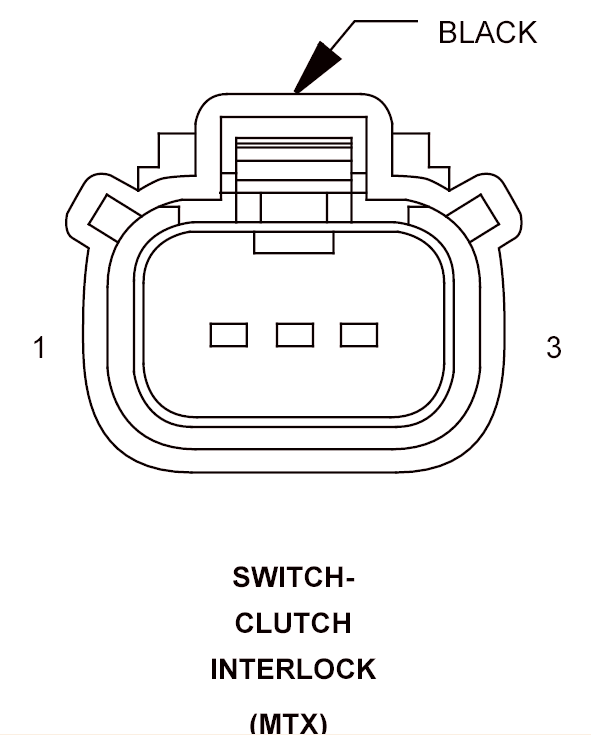

SWITCH-CLUTCH INTERLOCK - BLACK 3 WAY (MTX)

GJK880285Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 T26 18DG/LB CLUTCH UPSTOP SIGNAL (DIESEL)
2 T141 18YL/OR CLUTCH INTERLOCK SIGNAL
3 Z905 18BK GROUND
