Blower Motor Connector End View
Blower Motor Connector End View

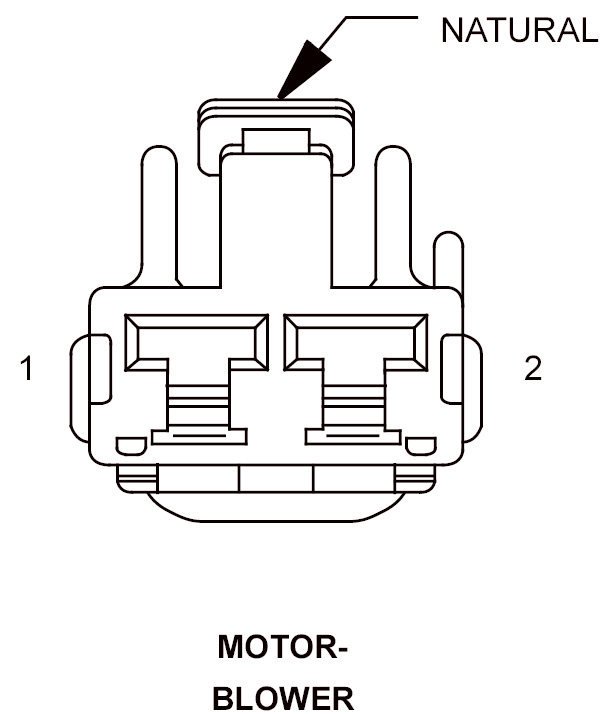

MOTOR-BLOWER - NATURAL 2 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
C70 12DB/YL
BLOWER MOTOR HIGH DRIVER
2
C7 12DB
BLOWER MOTOR SUPPLY
