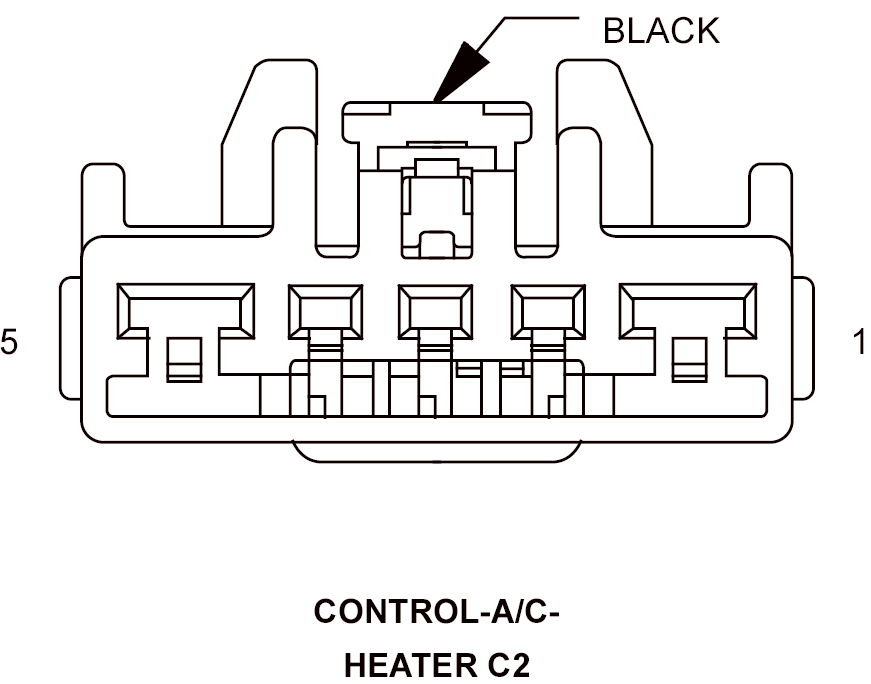

A/C Heater Control Connector End View (C2)
CONTROL-A/C-HEATER C2 - BLACK 5 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
C70 12DB/YL |
BLOWER MOTOR HIGH DRIVER |
| 2 |
C73 16DB/VT |
BLOWER MOTOR M2 DRIVER |
| 3 |
C72 18DB/OR |
BLOWER MOTOR M1 DRIVER |
| 4 |
C71 18DB/BR |
BLOWER MOTOR LOW DRIVER |
| 5 |
Z911 12BK/WT |
GROUND |
