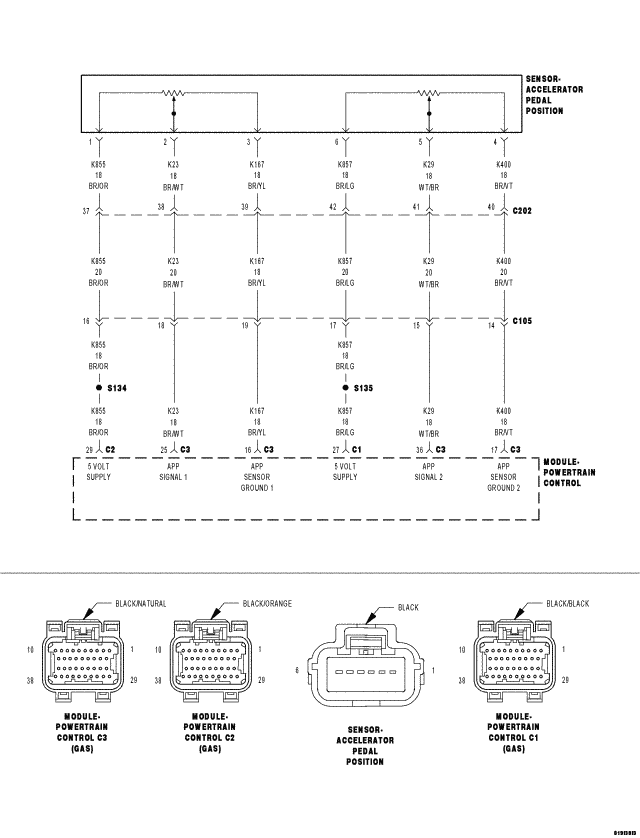

Home >> Jeep >> 2008 >> Liberty Sport, RWD, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P1593 To P2135 >> P2128-Accelerator Pedal Position Sensor 2 Circuit High >> Circuit Schematic
