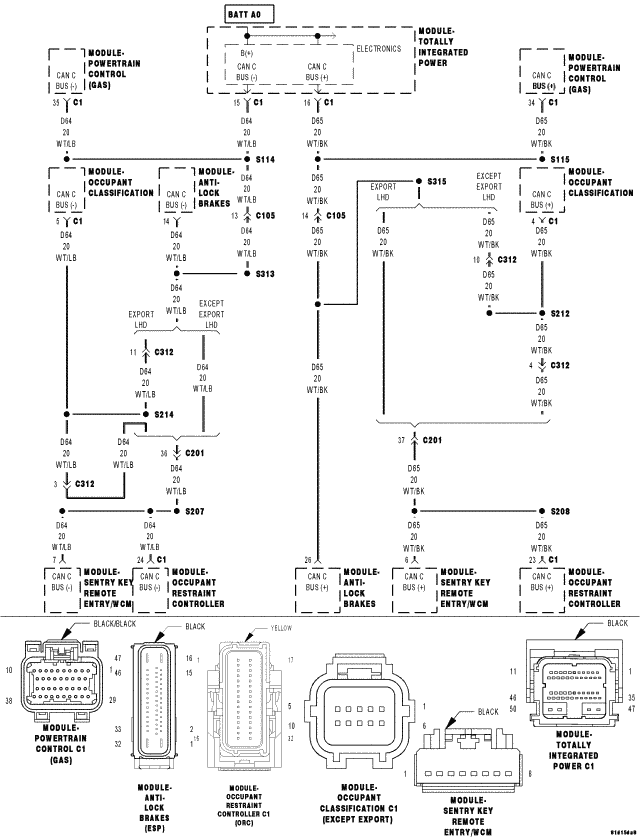

Home >> Jeep >> 2008 >> Liberty Sport, 4WD, Part Time, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P2138 To U110E >> U0141-Lost Communication With Front Control Module (TIPM) >> Circuit Schematic
