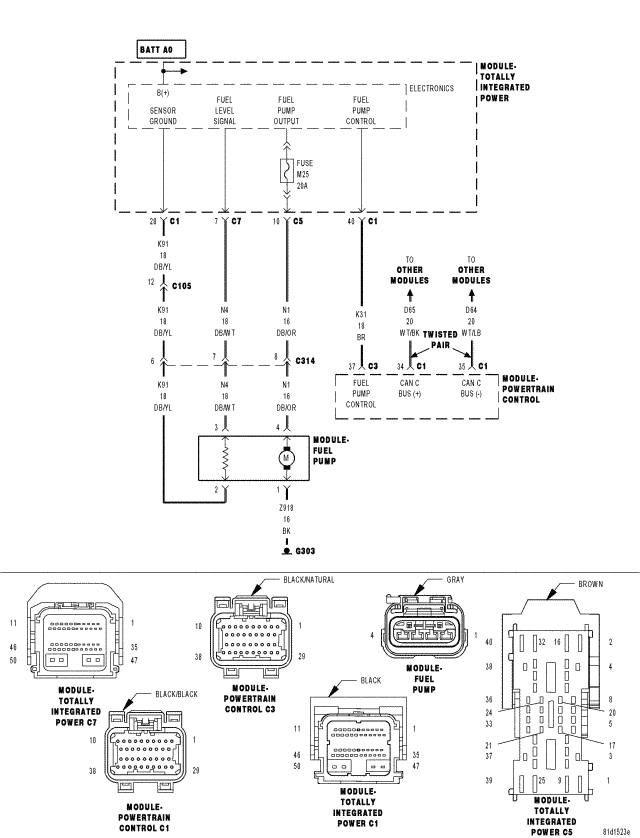

Home >> Jeep >> 2008 >> Liberty Sport, 4WD, Part Time, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0420 To P0563 >> P0461-Fuel Level Sensor 1 Performance >> Circuit Schematic
