Home >> Jeep >> 2008 >> Liberty Limited, RWD >> Repair and Diagnosis >> Engine Performance >> System >> DTCS P0203 To P0406 >> P0401-EGR System Performance >> Circuit Schematic

Circuit Schematic

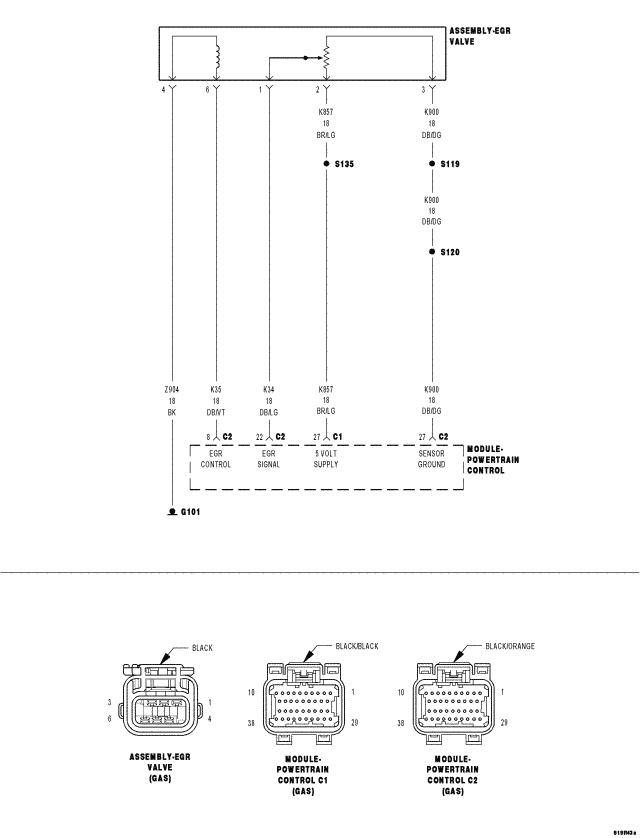

Fig 1: EGR System Circuit Schematic

GC0062149

Courtesy of CHRYSLER LLC
