MODULE, Power Inverter: Installation: Installation

WARNING: This page is about a different car, the 2009 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

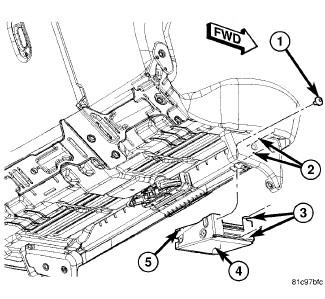

Fig 1: Removing/Installing Inverter Module

Courtesy of CHRYSLER LLC

NOTE: If a new inverter module is being installed, the mounting bracket will need to be transferred from the old module to the new.

Install the inverter module (4) onto the mounting bracket assembly (5).
Position the module and bracket onto the rear seat frame. Line up the mounting tabs (3) with the slots in the seat frame (2).
Push the module forward to engage the mounting tabs and install the fastener (1).

NOTE: Ensure the module electrical connector is connected during seat installation.

Install the rear seat assembly. Refer to Body/Seats/SEAT - Installation .
Connect the battery negative cable.
