Compass Limited, FWD, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Siren (Export) Connector End View
Siren (Export) Connector End View

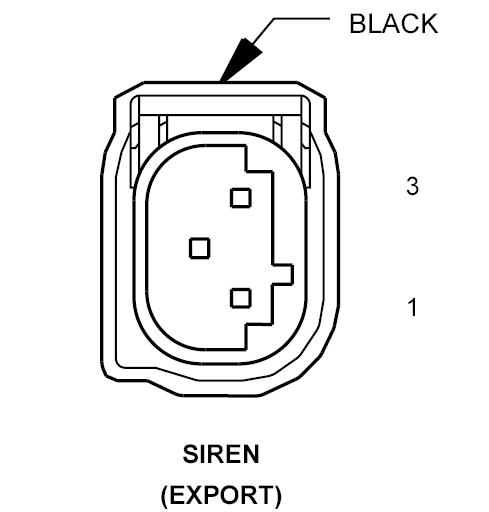

SIREN - BLACK 3 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
A414 20RD/DG
FUSED B(+) (I.O.D.)
2
Z908 20BK/PK
GROUND
3
D96 20WT/BR
SIREN SIGNAL CONTROL
