Left Tail Turn Lamp Connector End View

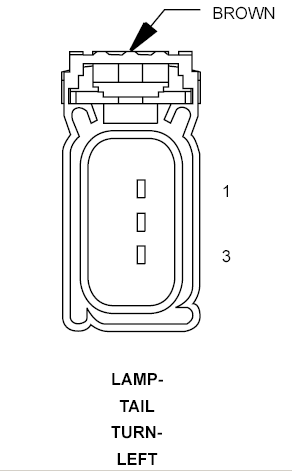

LAMP-TAIL TURN-LEFT - BROWN 3 WAY

GMK880155Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 Z960 18BK/LB GROUND
2 - -
3 L63 20DG/RD LEFT REAR TURN SIGNAL
