Left Front Turn Lamp (Export) Connector End View
Left Front Turn Lamp (Export) Connector End View

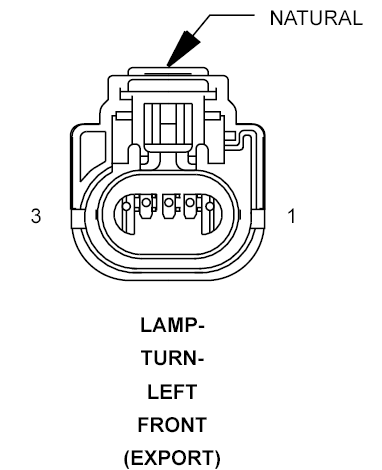

LAMP-TURN-LEFT FRONT - NATURAL 3 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z931 20BK/LG
GROUND
2
-
-
3
L61 20WT/LG
LEFT TURN SIGNAL
