Engine Mounting: Mount-Rear: Installation: Installation

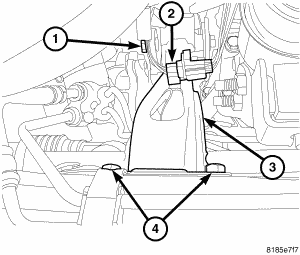

Fig 1: Rear Mount
GC0054977Courtesy of CHRYSLER LLC
  1. Position rear mount (3).
  2. Install rear mount retaining bolts (4) and tighten to 50 N.m (37 ft. lbs.).
  3. Install rear mount through bolt (1) and tighten to 47 N.m (355 ft. lbs.).
  4. Install oxygen sensor connector (2) retainer to mount (3).
