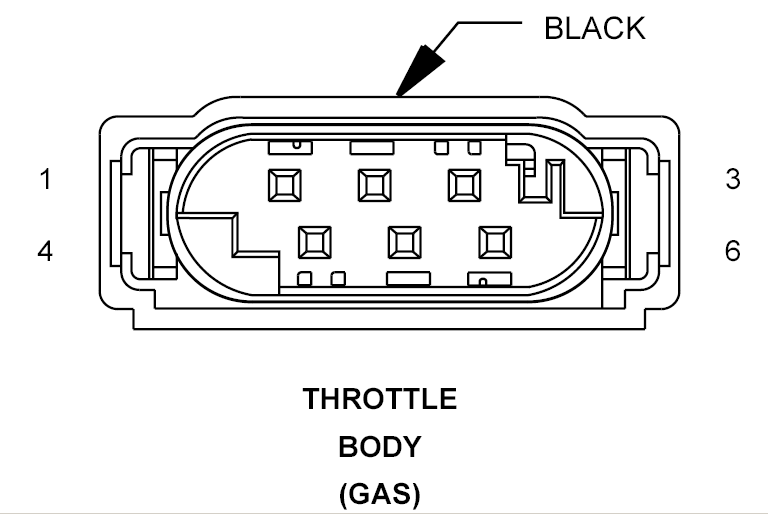

Throttle Body (Gas) Connector End View
THROTTLE BODY - BLACK 6 WAY (GAS)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K124 20DB/GY |
ETC MOTOR (+) |
| 2 |
K922 20BR |
TP SENSOR GROUND |
| 3 |
F855 20PK/YL |
5 VOLT SUPPLY |
| 4 |
K126 20DB/LG |
ETC MOTOR (-) |
| 5 |
K22 20BR/OR |
TP SIGNAL 1 |
| 6 |
K122 20DG/BR |
TP SIGNAL 2 |
