Connector End Views
>>
Connector Pin-Outs
>>

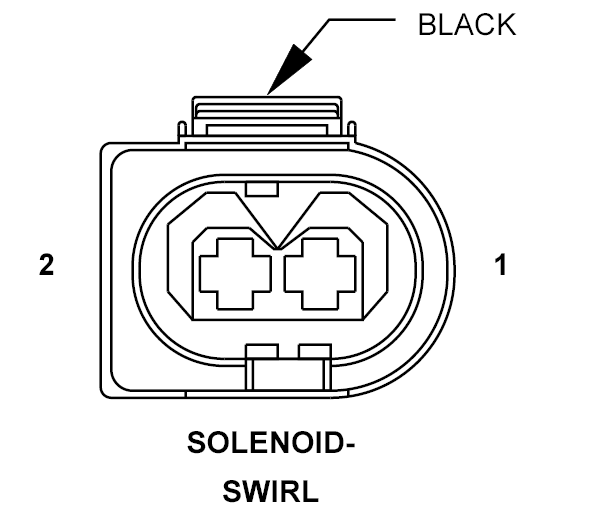

Swirl Solenoid Connector End View
Swirl Solenoid Connector End View
SOLENOID-SWIRL - BLACK 2 WAY MALE
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
F344 18DB/LB
FUSED ASD RELAY OUTPUT
2
N117 20DB/WT
INTAKE SWIRL SERVO MOTOR CONTROL
Courtesy of CHRYSLER CORP.
