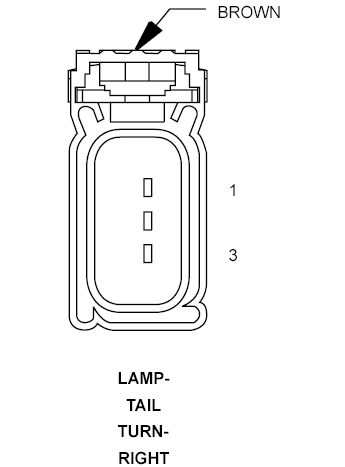

Right Tail Turn Lamp Connector End View
Right Tail Turn Lamp Connector End View
LAMP-TAIL TURN-RIGHT - BROWN 3 WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z964 18BK/WT
GROUND
2
-
-
3
L62 20WT/YL
RIGHT REAR TURN SIGNAL
Courtesy of CHRYSLER CORP.
