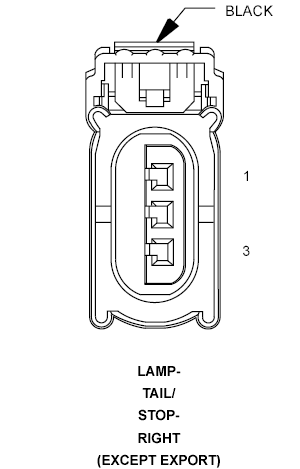

Right Tail Stop Lamp (Except Export) Connector End View
LAMP-TAIL/STOP-RIGHT - BLACK 3 WAY (EXCEPT EXPORT)
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
L55 20WT/RD |
STOP LAMP CONTROL OUTPUT |
| 2 |
L217 20WT/BK |
PARK LAMP CONTROL OUTPUT |
| 3 |
Z960 18BK/YL |
GROUND |
