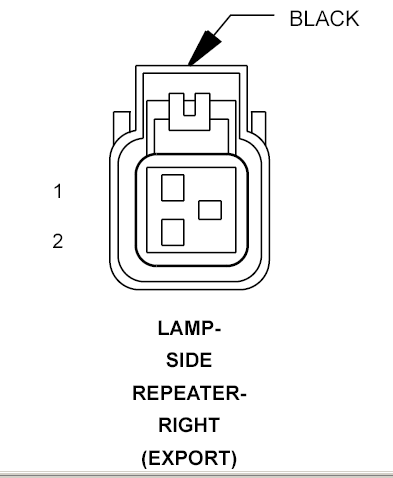

Right Side Repeater Lamp (Export) Connector End View
Right Side Repeater Lamp (Export) Connector End View
LAMP-SIDE REPEATER-RIGHT - BLACK 2 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
L160 20WT/TN
RIGHT TURN SIGNAL (OUT)
2
Z908 20BK/PK
GROUND
Courtesy of CHRYSLER CORP.
