Compass Limited, AWD, Standard
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
Connector End Views
>>
Connector Pin-Outs
>>
Right Front Turn Lamp (Export) Connector End View
Right Front Turn Lamp (Export) Connector End View

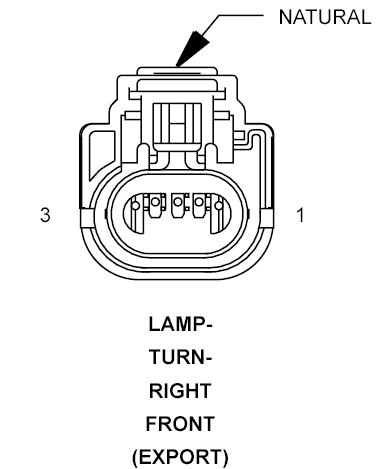

LAMP-TURN-RIGHT FRONT - NATURAL 3 WAY (EXPORT)
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
Z932 20BK
GROUND
2
-
-
3
L60 20WT/TN
RIGHT TURN SIGNAL
