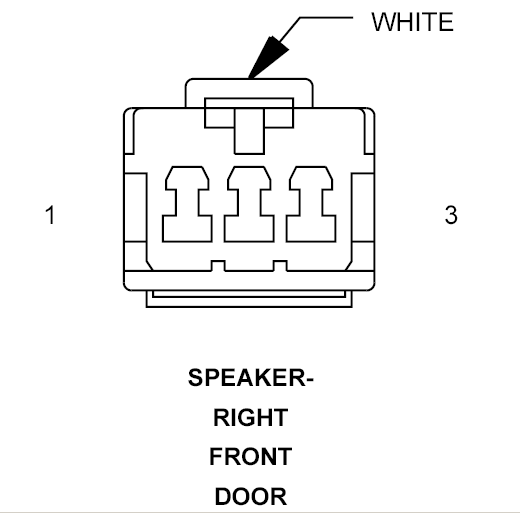

Right Front Door Speaker Connector End View
SPEAKER-RIGHT FRONT DOOR - WHITE 3 WAY
 Courtesy of CHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
X202 18DG/VT |
RIGHT FRONT DOOR SPEAKER (+) (BASE) |
| 1 |
X202 18DG/VT |
AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) (PREMIUM) |
| 2 |
- |
- |
| 3 |
X292 18DG/YL |
RIGHT FRONT DOOR SPEAKER (-) (BASE) |
| 3 |
X292 18DG/YL |
AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) (PREMIUM) |
