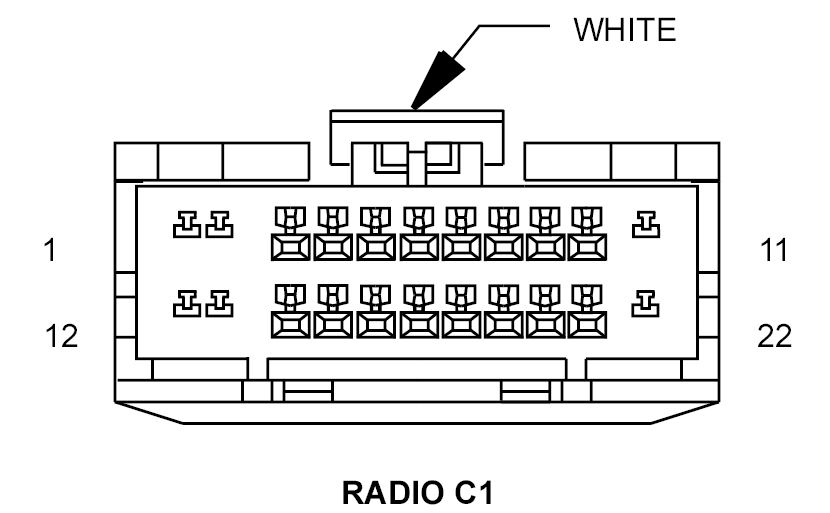

Radio Connector End View (C1)
RADIO C1 - WHITE 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A413 18RD/LB | FUSED B(+) (I.O.D.) |
| 2 | - | - |
| 3 | - | - |
| 4 | X703 22DG/OR | LEFT AUDIO OUTPUT (HANDS FREE) |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | D54 20WT/PK | CAN B BUS (-) |
| 7 | X202 18DG/VT | RIGHT FRONT DOOR SPEAKER (+) (BASE) |
| 8 | X292 18DG/YL | RIGHT FRONT DOOR SPEAKER (-) (BASE) |
| 9 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 10 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 11 | Z937 16BK/YL | GROUND |
| 12 | A413 18RD/LB | FUSED B(+) (I.O.D.) |
| 13 | X60 20GY/RD | POWER ANTENNA SIGNAL (PREMIUM) |
| 14 | - | - |
| 15 | - | - |
| 16 | X704 22DG/PK | RIGHT AUDIO OUTPUT (HANDS FREE) |
| 17 | X795 22DG/BK | COMMON AUDIO OUTPUT (HANDS FREE) |
| 18 | X51 18DG/DB | LEFT REAR SPEAKER (+) |
| 19 | X57 18DG/BR | LEFT REAR SPEAKER (-) |
| 20 | X58 18GY/OR | RIGHT REAR SPEAKER (-) |
| 21 | X52 18GY/DB | RIGHT REAR SPEAKER (+) |
| 22 | Z937 16BK/YL | GROUND |
